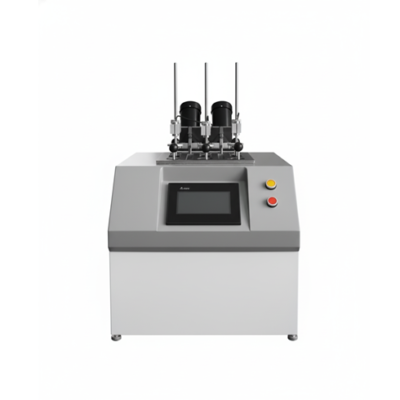

Vicat Softening Point (VSP) Tester: Essential Thermal Analysis for Plastics

The Vicat Softening Point (VSP) Tester is a precision instrument used to determine the temperature at which thermoplastic materials begin to soften under a specific load and heating rate. This standardized test provides critical data for material selection and quality control in elevated temperature applications.

Key Features & Benefits

• Precision Temperature Control: Maintains accurate heating rates and temperature measurement, ensuring reliable and repeatable test results.

• Standard Compliance: Manufactured to meet international standards including ISO 306, ISO 75, GB/T 1633, and GB/T 1634, providing globally recognized test data.

• Differentiated Thermal Analysis: Specifically measures the temperature at which plastic specimens lose form stability, complementing Heat Distortion Temperature (HDT) testing which focuses on load-bearing capacity.

• Material Development Support: Delivers essential data for plastic formulation and characterization, enabling improved material performance in thermal applications.

• User-Friendly Operation: Features intuitive controls and clear data display, simplifying the testing process for quality control and research applications.



Specification:

Model	EI-V300T
Temperature Range	Up to 300°C
Heating Rate	120±10°C/H (12°C±1°C/6min) 50±5°C/H (5°C±05°C/6min
Temperature Resolution	±0.1°C
Accuracy	±0.5°C
Deformation Resolution	0.001mm
Deformation Range	0 ~ 1.5mm
Test Frame	3
Heating Medium	Methyl Silicone Oil
Rate Power	4kW
Rate Voltage	240V, 50Hz
Dimension	528 x 545 x 37mm
Weight	Approx. 50kg
Weight Set	1000g x 12pcs 932g x 3pcs 500g x 3pcs 200g x 6pcs 100g x 3pcs 50g x 3pcs 20g x 6pcs 10g x 3pcs 5g x 3pcs 2g x 6pcs 1g x 3pcs







PDF Data Sheet – EI-V300T Heat Distortion / Vicat Softening Temperature
