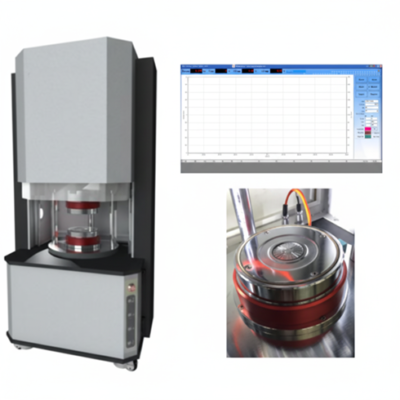

EI-R200Y Rheometer Malaysia / Cure Meter: Precision Rubber Cure Testing

The EI-R200Y Rheometer and Cure Meter is an advanced yet user-friendly instrument designed to determine the optimal cure time of mixed rubber compounds. It provides comprehensive characterization of materials before, during, and after vulcanization, delivering critical data for quality control and process optimization in rubber manufacturing.

Key Features & Benefits

• Comprehensive Cure Analysis: Precisely measures curing speed, curing time, and de-sulfurization characteristics, enabling accurate optimization of vulcanization processes.

• Advanced Control System: Incorporates computerized servo drive with PLC control module, ensuring precise data collection, storage, and real-time graphical display of test results.

• Reliable Drive Mechanism: Utilizes synchronous motor with amplitude regulator, providing consistent and repeatable oscillation for accurate cure measurements.

• Efficient Data Management: Features USB data interface for seamless connectivity, facilitating easy transfer and analysis of test results.

• Durable Construction: Equipped with mold cores manufactured from AISI A2 tool steel, guaranteeing long-term reliability and resistance to wear in demanding industrial environments.

Standard Compliance: ISO 6502 , ASTM D 5289, DIN 53529

Specification

Model	EI-R200Y
Temperature range	Ambient ~ 200°C
Temperature Resolution	0.01°C
Temperature Accuracy	± 0.3°C
Torque range	0 ~ 10 N.m
Torque resolution	0.001 N.m
Torque units	ib.in, n.m, dn.mm, kg.cm and etc
Die material	AISI A2
Sample volume	4.5 cm³
Frequency	1.7 Hz
Amplitude	± 1°
Curing time	2 ~ 300 minutes
Calculated Data	MH, ML, t10, t30, t50, t70, t90, ts1, ts2, Vc1, Vc2 and etc
Controller	15“ Industrial Personal Computer (IPC)
Compressed air	5.0 kg/cm²
Working environment	Temperature 10 ~ 35°C Humidity < 80%
Rate Voltage	240v 50Hz
Dimension	660x580x1300 mm
Weight	Approx. 280kg



PDF Data Sheet – Rheometer EI-R200Y
