A Mooney Sample Punch Die is a specialized, precision tool used exclusively for preparing rubber test specimens for the Mooney Viscometer Test. This test is a fundamental method in the rubber industry for measuring the viscosity and scorch time of raw or compounded rubber.

The primary function of the punch die is to cut a perfectly sized and shaped disc from a sheet of rubber, ensuring the test results are accurate, consistent, and repeatable.

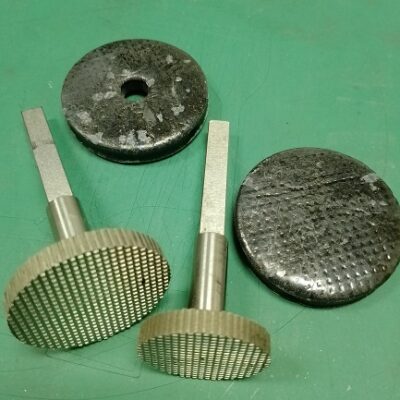

A dual punch die block set to die cut the test piece for top and bottom for Mooney Viscometer Test.

• Cutting Diameter:  48mm

• Orifice 10mm for bottom sampling

• Test piece ejector mechanism



Demo Video – Mooney Sample Punch Die

Data Sheet EI-P50
