Pneumatic Press machine / Die sample cutter
Introduction
Pneumatic sample press machine is mainly used to punch the standard test sample for material tensile strength test, it is help for user to prepare accurate shape to meet the international standard.

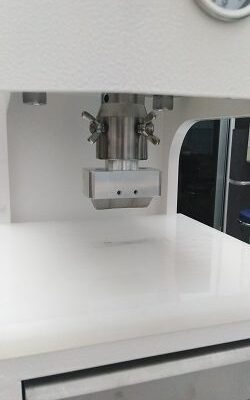

This pneumatic sample press machine have a quick change adapter, which is suitable for steel/wood based die cut and dumbbell ejected die cut.
Applicable for prepare test piece of condom, medical glove, soft rubber, plastic film, fabrics, leather, non-woven, card boards, laminates and paper.
Features
1. Die cut and platen quick change adaptor for convenience and save time.
2. Compact design, pneumatic control for
3. Pressing force up to 1500 kgf.
4. Safety device – Dual button operating system, punching speed adjustable
Specification
| Model | EI-P50 |
| Load frame | 2 ton |
| Cutting Force | 1500 kg |
| Air pressure | < 0.8 Mpa |

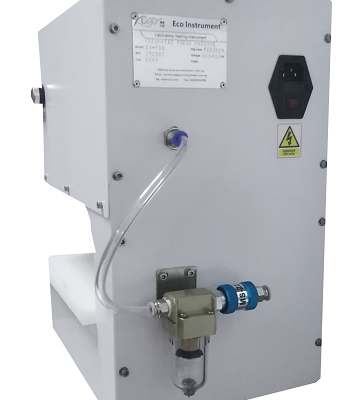

| Air inlet | Pressure regulator & filter |
| Dies | Hard wood mounted dies & Steel-forged dies |
| Compression platen | Ø 160 x 15 mm |
| Slot adaptor | Screw lock type (suitable for various type of die cut) |
| Stroke | 50 mm |
| Sample Platform | 220 x 220 mm |
| Rate Voltage | AC 240 V, 50 Hz |
| Dimension | 300 x 270 x 400 mm |
| Weight | Approx. 40 kg |
| Accessories |
|
Standard
ASTM, ISO, EN or JIS cutter cutting the number of various types for testing material
