Ultrasonic Thickness Gauge Malaysia: Precision Thickness Measurement Solution

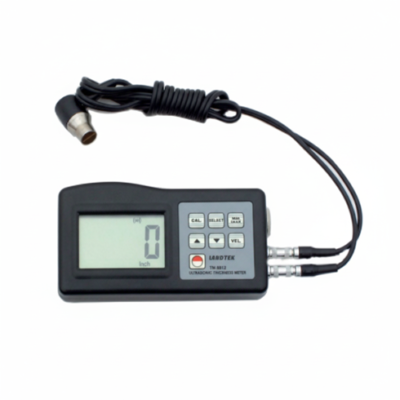

The Ultrasonic Thickness Gauge is a sophisticated portable instrument designed for accurate, non-destructive measurement of wall thickness across a wide range of materials. Utilizing advanced microcomputer LSI circuitry and crystal time base technology, this gauge delivers high-precision measurements with exceptional speed and reliability, making it an essential tool for industrial maintenance and quality assurance.
Key Features & Benefits
-
High-Precision Measurement: Uses microcomputer LSI circuits and crystal time base technology, ensuring accurate and rapid thickness readings with resolution up to 0.01mm.
-
Wide Measurement Range: Covers an extensive range from 1.00mm to 200.00mm, making it suitable for diverse applications from thin sheets to thick-walled components.
-
Versatile Probe Compatibility: Supports 11 different frequency probes with high-power emission and broad receiving sensitivity, enabling measurements on rough surfaces and challenging materials like cast iron.
-
Portable & User-Friendly: Compact, lightweight design with an easy-to-read LCD screen, providing instant, legible results in field and shop environments.
-
Power Efficient: Features low power consumption with battery indicator and auto-shutoff after 2 minutes of inactivity, extending battery life during extended use.
Applications
Measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage
tanks, etc. in industries of petroleum, shipbuilding, power station and machine manufacturing.
Specification:
| Model | TM8812 |
| Measuring method | Ultrasonic pulse echo |
| Display | 4 digit, 10mm LCD |
| Measurement range (metric/imperial) | 1.00~200.00mm, 0.039-7.87inch (45# steel) |
| Resolution | 0.1mm / 0.00394 inch |
| Accuracy | ±(0.5%n + 0.1) |
| Lower limit steel pipes | Ø 15 x 2.0 mm
Ø 20 x 3.0 mm |
| Interface | USB |
| Velocity range | 1000 ~ 9000 m/s |
| Battery | 4 x 1.5 V – AAA battery |
| Operating environment | Temperature 0 ~ 50°C
Humidity <80% |
| Dimension | 120 x 62 x 30 mm |
| Weight | Approx. 160g |
PDF Data Sheet – Ultrasonic Thickness gauge
