Solid Densimeter – Solid material density measurement

density meter for solid material

TWS-E series Densimeter, solid density tester is an instrument for determine exactly solid material density, also called apparent density.

This density tester is common used in rubber, plastic, metal industries, new material research department and other solid or non-absorbent materials.

Standard accordance to ASTM D-297, JIS K-6268A, JIS 6350 (Rubber) and ASTM D-792, JIS K-7112, ISO 2781, ISO 1183 (Plastic)

Archimedean principle: Applying the Hydrostatic method of the object weighing in air and immersed in the liquid medium.

Feature

Test Result – Apparent density, Volume, Mixture ratio %

*Touch screen interaction dialogue is easy to operation

*Temperatures sensor – detected and compensate the measurement error automatically

RS 232 / USB interface – Thermal printer and computer

Specification

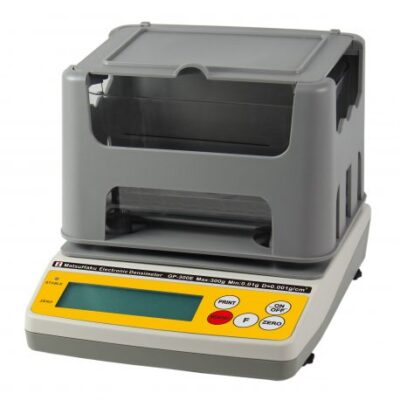

Model	GP-300E	TWS-300E / 600E	TWS-153E	TWS-214E
Display	LCD Soft key panel	Colour touch screen
Capacity	300 g	300 g / 600 g	150 g	210 g
Resolution	0.01 g		0.001 g	0.0001 g
Density Accuracy	0.001 g/cm³			0.0001 g/cm³
Density Range	˃1 and ˂1 g/cm³
Value showed	Apparent density, volume, mixture ratio %
Temperature compensation	Manual	Auto
High & Low density limit alarm	Yes
Testable sorts	Solid, film, granules, floating material,
Standard accessories	*Temperature sensor (TWS), thermometer, tweezers, steel angle, SS net ball, glass cup, standard weight, power adapter, instruction book, calibration certificate.
Optional	Thermal printer
