Semi-Auto Grinding and Polishing equipped with step-less speed change controller, user can choose the variable speeds from 50 to 1000 rpm.

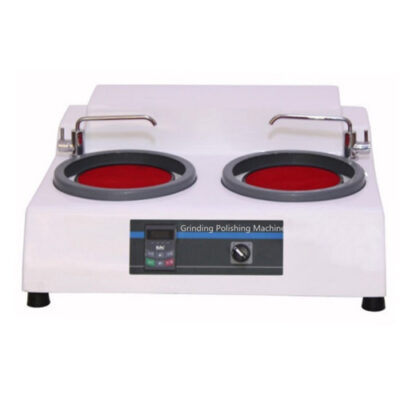

metallography grinding and polishing machine
Semi auto grinding and polishing machine is very convenience for polish and grind, as usual, it is adopted to metallography grinding machine and polishing machine, can finish different rough, fine, dry, wet grinding and processes of polish
Specification
| Model | EI-2B | EI-2BH |
| Disc Diameter | Ø 200 or Ø 230 mm | |
| Speed | 50 ~ 1000 r/min (Adjustable) | |

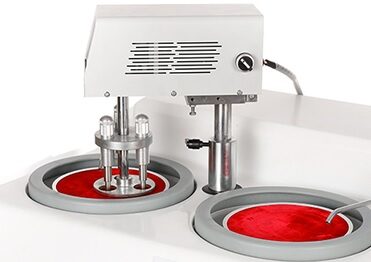

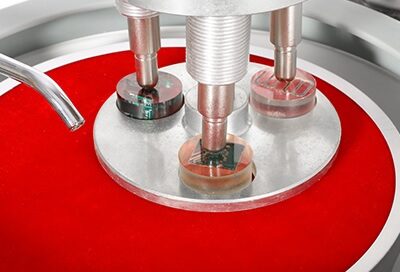

| Sample holder | – | Ø 30, Ø 40 or Ø 50 mm |
| Holder rotation speed | – | 50 rpm |
| Rate Power | 550 W | |
| Rate Voltage | 220 V, 50 Hz | |
| Dimension | 710 x 610 x 275 mm | |
| Weight | Approx. 43 kg | Approx. 48 kg |
| Grit No. of Abrasive Paper | (Ø 8”) 80, 120, 150, 180, 240, 320, 400, 600, 800, 1000, 1200, 1500, 2000, 2500, 3000, 5000. |
|
| Polishing Cloth | Ø 200 / Ø 230 mm | |
| Abrasive paper | Ø 200 / Ø 230 mm | |
