Rotary abrasion tester

It is designed for determining the resistance of cloths, paper, paints, plywood, leather and natural rubber to abrasion. Resistance to abrasion is defined as the ability of a material to withstand mechanical action such as rubbing, scraping, or erosion. The test is made by abrading the specimen against the sand wheel.

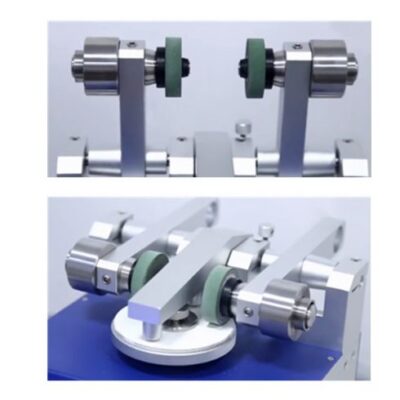

The principle of abrasion derived by the test sample, turning on a vertical axis, against the sliding rotation of 2 Abrading Wheels. The wheels are driven by the sample in opposite directions about a horizontal axis displaced tangentially from the axis of the sample One of the abrading wheel rubs the specimen outward toward the periphery and the other wheel, inward to the centre.

The area of abrasion from a pattern of crossed arcs of about 30cm².
The degree of abrasion for the specimen also depends on the load force 500g, 750g or 1000g on each arm being acted on the axial of the both arms, which has a load pressure of 250g.
Standard according to DIN 52347 53109 53754 53799, ISO 5470, 9352, 3573, 4586-2, 7784-2, ASTM C217, D1044, D3389, D4060, D5342

*Can select many different sorts abrasion medium for different tests.
*Specimen turntable speed control options of both 60 rpm and 72 rpm.
*LCD display for accurate and convenient setting and monitoring to the whole test.
*Three different precise stainless steel weights 500g, 750g, 1000g ensure the different requirements for different loads. Weights are marked to show total load on each wheel. This marking includes the weight of the abrading arm 250 grams
*Abrading arms and fixing sleeve of abrading wheel have been calibrated and balanced before leaving factory.
*A vacuum system is included and equipped with cleaner to move the loose abrading’s or any dirt
*A precision vacuum nozzle adjustment control allows the height to be modified for accommodating varying specimen thickness.


Model EI-RA100-10 EI-RA100-17
Application Wood Paint film
Abrading wheels Rubber abrasive wheel CS-10 / CS-17
Platform speed 60 rpm & 72 rpm, Selectable
Cycle Timer 0 – 9999 cycles
Specimen sizes Ø130 / 100x100mm Ø100
Abrasive sheet Abrasive strip Ø50
Load weights 500g, 750g & 1000g
Rate power 25w
Rate voltage 240v 50Hz
Dimension 260x410x280mm
Weight 20kg


PDF Data Sheet

Rotary Abrasion Tester EI-RA100 series
