Plastic Resin Density Tester

Density of measurement is very important for both of raw materials and finished products. Used to ensure homogeneity to prevent product quality issues, such as strength and crack resistance can be affected.

Principle:

According to the standard of ASTM D297, ASTM D792, JIS K6530, ISO 2781, ISO 1183 and by applying the buoyancy of the object immersed in the liquid and hydrostatics principle.

Features:

  • It can measure density of solid, granular, and floating bodies
  • With the function of solution compensation.
  • With RS232 / USB interface to data acquisition by printer and PC.
  • Simple operation and immediately display all measuring data.
  • With function measuring mixing ratio of material content.
  • Upper and lower limit function with buzzer
  • Minimum 5g resin sample for each test

Applicable for plastic industrial laboratory of HDPE, LDPE, LLDPE, Nylon, PC, ABS, PET, PETE, Vinyl, PVC, PP, PS and others.

Specification

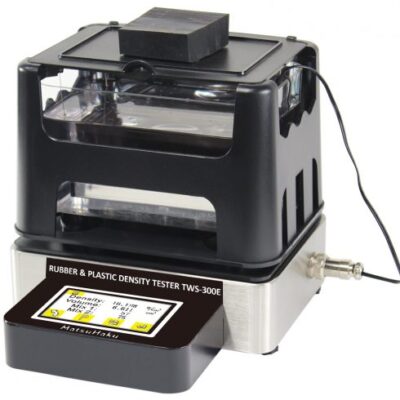

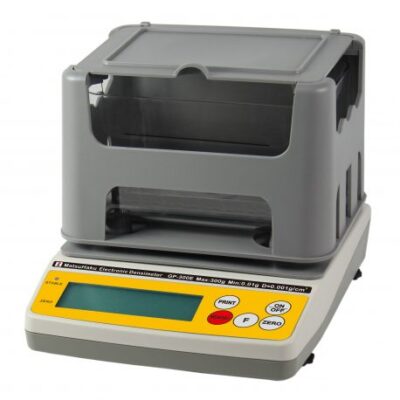

Model GP-300E TWS-300E
Weight range 0.01g – 300g
Value showed Density, Volume and Mixing ratio
Testing precision Density 0.001g/cm3,
Density Range >1g/cm³  and <1g/cm³ both are able to test
Penal / Display Soft keypad / LCD Touch Screen
Standard Accessories Water Tank, Anti-Floating Frame, Calibration Weight, Wire ball, Beaker, AC Adapter, Tweezers, Thermometer Water Tank, Anti-Floating Frame, Calibration Weight, Wire ball, Beaker, AC Adapter, Tweezers, Temperature Sensor
Optional Accessories Thermal Printer and Data acquisition cable/software



Pdf Data Sheet:

Plastic Resin Density Tester
