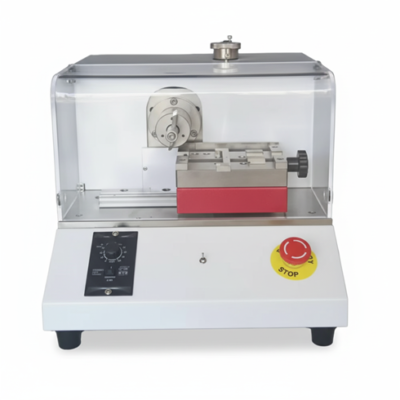

EI-NM Plastic Impact Notch Cutter Malaysiat for Plastic: Precision Sample Preparation
The EI-NM Plastic Impact Notch Cutter is a specialized motorized instrument designed for the fast and accurate preparation of notched specimens from plastic and non-metallic materials. It ensures consistent, reproducible notches essential for reliable Izod and Charpy impact toughness tests, making it an indispensable tool for quality control and research laboratories.
Key Features & Benefits
-
Fast & Accurate Multi-Sample Loading: Enables high-throughput processing with consistent notch geometry, ensuring reliable and repeatable impact test results.
-
Motorized Operation: Provides precise, motor-controlled cutting for uniform notch depth and geometry, eliminating operator-dependent variability.
-
User-Friendly Design: Features intuitive controls for easy operation, reducing training time and enhancing workflow efficiency.
-
Integrated Safety Guard: Ensures operator protection during the notch-cutting process, complying with laboratory safety standards.
- Standard: ISO179, ISO180, GB/T1043-93, GB/T1843-1996
Specification:
| Model | EI-NM |
| Broach | A type: 45°, r = 0.25mm B type: 45°, r = 1.0mm C type: 45°, r = 0.1mm |
| Travel Length | 160mm |
| Cutting Speed | 150 rpm |
| Standard Accordance | ISO179, ISO180, ASTM D256 |
| Power | 240V, 50Hz |
| Dimension | 600 x 270 x 300mm |
| Weight | Approx. 30kg |
