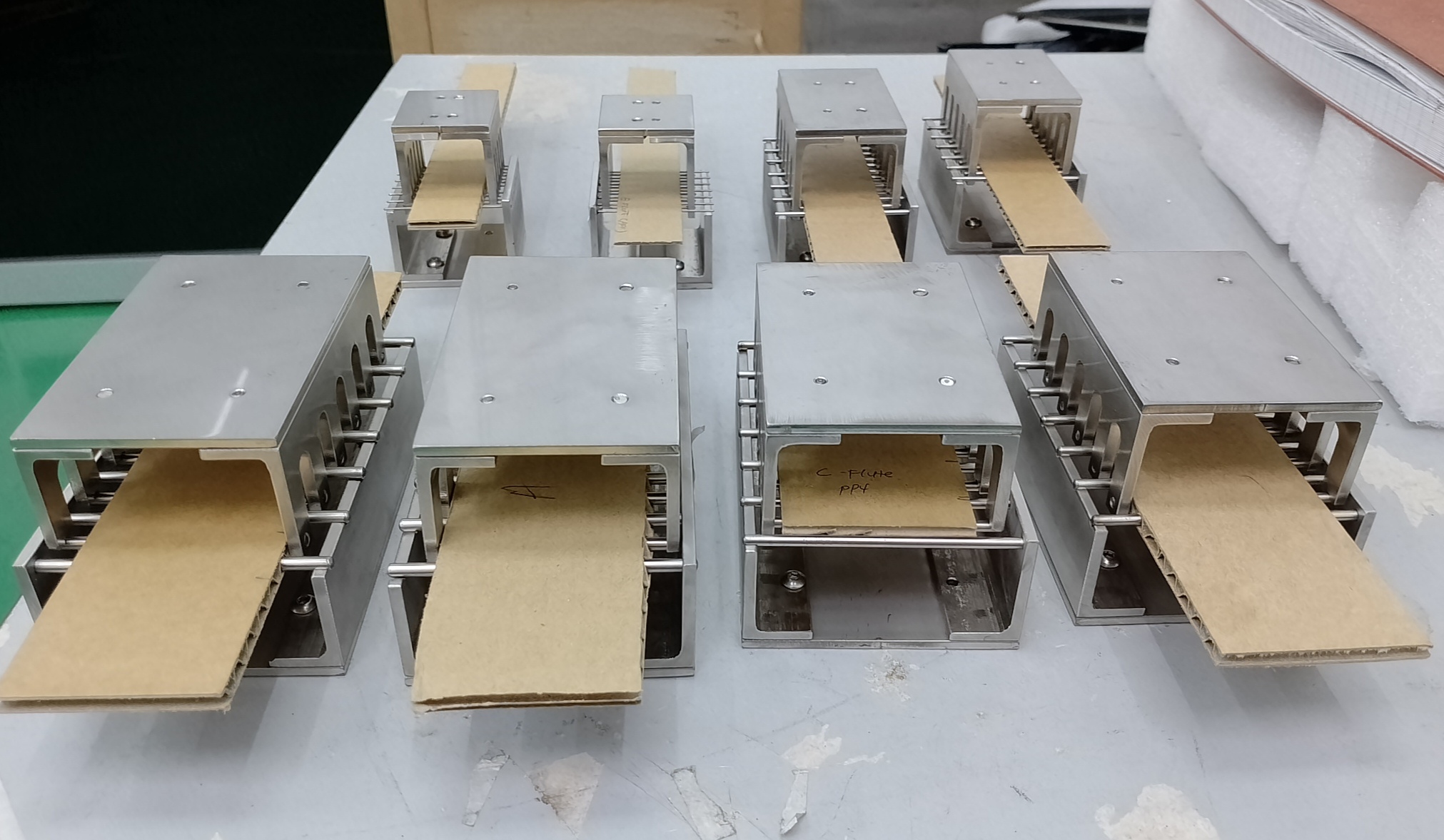

Corrugated Board Pin Adhesion Test Fixtures

Our Corrugated Board Pin Adhesion Test Fixture is a precision-engineered accessory essential for quantifying the structural integrity of corrugated cardboard. Specifically, designed to perform the standardized Pin Adhesion Test, this fixture accurately measures the bond strength between the fluted medium and the linerboards in both single-wall and double-wall corrugated board.

As a result, this critical quality control procedure is a fundamental method for ensuring packaging durability. Ultimately, by using this fixture, manufacturers can verify adhesive quality, optimize production processes, and prevent box failure under load.

In summary, perform standardized Pin Adhesion Tests with our precision jig to guarantee the reliability of your corrugated packaging

Sample Preparation:

A rectagle specimen of corrugated board is cut.

Loading:

The pins on the upper and lower assemblies are carefully insert to the flutes of the corrugated medium.

Testing:

The tensile tester or paper crush tester compress the jig apart at a constant speed. The force required to separate the liners from the corrugated medium is measured in Newtons per meter (N/m) or pounds-force per inch width (lbf/in).

Result:

This maximum force recorded is the Pin Adhesion Value, a direct indicator of the glue bond strength

Technical Specification

Corrugated Board Pin Adhesive Test Fixtures
Model	EI-PATF/A	EI-PATF/B	EI-PATF/C	EI-PATF/E
Flutes	A	B	C	E
Test Specimen	50 x 150mm	32 x 100mm	50 x 150mm	25 x 100mm
Pin Diameter	3.5mm	2mm	3mm	1mm
Distance Between Pin	18.mm	13mm	15mm	7mm
Support Pins	7
Pressure Pins	6
Suppoprt Pin Length	77mm	59mm	77mm	50mm
Pressure Pin Length	64mm	46mm	64mm	38mm

Note: Flutes per foot may vary with corrugated board manufacturer. Thus, to make appropriate apparatus use pin diameter and tolerance for each flute size, and adjust pin spacing as required to tolerances noted.

Standard Compliant with TAPPI T 821 & ISO 3038.
