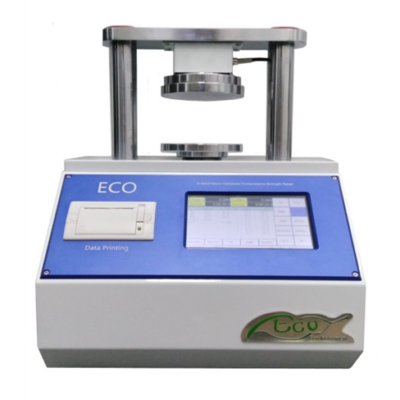

Paper Crush Tester
Paper crush Tester is used to test the compression resistance degree of corrugated paper and craft paper in upright direction at certain condition, flat crush strength test, compression resistance test.
It’s equipped with advanced high precision load-cell, step-less motor and touch screen interface.
Features
- Smooth and precise transmission mechanism.
- Large color touch screen interface
- Real-time load curve display
Testing method
- RCT, ECT, FCT, PAT methods
- Unit of test: N, Kgf, lbf (switchable)
Paper Crush Test Report
Standard Accordance
- FCT – Flat Crush Test: ISO 3035, TAPPI T 825, FEFCO 6
- RCT – Ring Crush Test: ISO 12192, TAPPI T 822
- CMT – Concora Medium Test: ISO 263, TAPPI T 809
- CCT – Corrugated Crush Test: TAPPI T 843, T824, SCAN P42
- ECT – Edge Crush Test: ISO 13821, 3037, TAPPI T 811, T 829, T 838, T 839, FEFCO 8
- PAT – Pin Adhesive Test: TAPPI T 821, FEFCO 11
Specification
| Model | EI-6003T |
| Measuring Range | 5N ~ 3,000 N |
| Accuracy | ≤1% |
| Force range | 0.4% ~ 100% FS |
| Displacement Speed | 100 r/min |
| Platen Diameter | 125 mm |
| Force Resolution | 0.01 N |
| Displacement | 70 mm |
| Test Speed | 12.5 ±1 mm/min |
| Platen Parallelism | ≤ 0.05 mm |
| Memory | 99 groups |
| Interface | 7” LED Display |
| Printout Modular Integrated | Thermal Printer |
| Rate Voltage | 220 ~ 240 V, 50 Hz |
| Dimension | 400 x 360 x 550 mm |
| Weight | Approx. 45 kg |
| Accessories | Compression Platen Tools Thermal Roll Paper Instruction Manual Warranty Card Calibration Certificate |
| Optional – Sample preparation and fixtures | |
