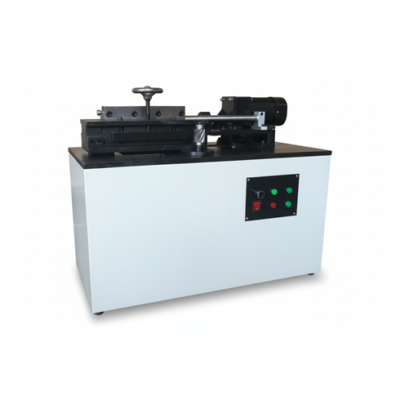

Motorized Plastic Dumbbell Shape Sample Preparation Machine for Non-Metallic Materials

Motorized Plastic Dumbbell Shape Sample Preparation Machine is a precision-engineered system designed for high-efficiency preparation of standardized dumbbell-shaped test specimens from non-metallic materials. Utilizing advanced imitation milling technology, it produces accurate, consistent samples essential for reliable tensile testing in quality control and research applications.

Key Features & Benefits

• High-Precision Imitation Milling: Creates perfectly shaped dumbbell specimens that consistently match international testing standards (e.g., ASTM D638, ISO 527).

• Versatile Specimen Sizes: Easily interchangeable templates allow for quick preparation of various standardized dumbbell dimensions.

• Efficient Automated Operation: Motor-driven milling and feed systems enable high-throughput sample preparation with minimal operator intervention.

• Consistent Results: The spring-loaded template guidance system ensures exceptional repeatability between specimens.

• Robust Construction: Built with precision lead screws and linear guides for durable, long-term performance.

Specification:

Model	EI-SP12
Maximum sample thickness	≤15mm
Maximum sample length	250mm
Maximum sample width	20mm
Milling feed rate	Variable speed 0-180mm/min
Motor Speed	2800rpm
Rate voltage	415v 50Hz
Rate power	300w
Dimension	700x400x550mm
Weight	Approx. 80kg
Accessories	Sample plate ASTM D638-1



PDF Data Sheet – EI-SP12 Electric Specimen Preparation Machine
