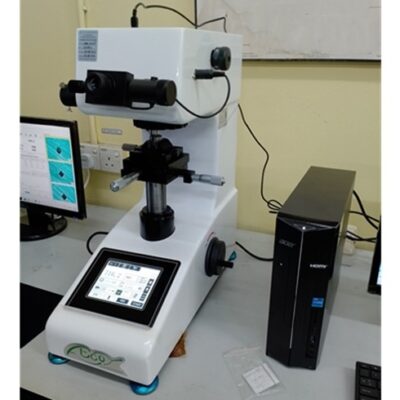

Computerized Control Touch Screen Digital Micro Vickers Hardness Tester
The Computerized Control Touch Screen Digital Micro Vickers Hardness Tester represents the pinnacle of modern hardness testing technology, integrating advanced optics, precision mechanics, and digital control systems into a single, highly stable platform. Equipped with high-quality components and featuring a state-patented lifting system, this instrument delivers exceptional reliability and accuracy for a wide range of material testing applications.
Key Features & Benefits
-
Advanced Control System: Computerized touch screen interface provides intuitive operation and precise control over test parameters, ensuring consistent and repeatable results.
-
Patented Lifting Mechanism: Protected by state patent application, the specialized lift and lower system enhances testing stability and operational safety.
-
Integrated Technology Platform: Combines optics, mechanics, and electronic systems in one unified design, delivering superior performance and measurement accuracy.
-
Exceptional Value: Offers unbeatable price-to-performance ratio, making professional-grade hardness testing accessible for various quality control applications.
-
High Stability Operation: Manufactured with premium components and robust engineering, guaranteeing long-term reliability in demanding laboratory environments.
Applications & Materials
This advanced hardness tester serves critical quality control functions across multiple industries and material types:
-
Metallic Materials:
-
Steel and nonferrous metals
-
Tinsel and sheet metal
-
Cemented carbide
-
Metallographic structures
-
-
Surface Treatments:
-
Carburization and nitriding layers
-
Decarburization analysis
-
Surface hardening layers
-
Galvanized coatings
-
-
Non-Metallic Materials:
-
Glass and ceramics
-
Semiconductor chips
-
Brittle material analysis
-
Specification:
| Model | EI-eVIck-1ATS |
| Turret | Automatic Turret |
| Testing Force | 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) Test Force Error: ±1.0% |
| Hardness Scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Loading Speed | ≤0.05mm/sec |
| Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) |
| Min. Measuring Unit | 0.01μm |
| Hardness Value Range | 5HV ~ 3000HV |
| Hardness Value Of Reading | Digital LCD Screen |
| Eyepiece | 10X digital eyepiece |
| Objective Lens | 10X (observe), 40X (Measurement) |
| Total Magnification | 100X (For Observation) , 400X (For Measurement) |
| Loading Method | Automatically (Load, dwell and unload the testing force) |
| Duration Time | 1 ~ 99s (each step is 1 second) |
| HV Software HV Software SystemSystem | 5 million pixel camera; camera connect tube and adapter; Professional HV/HK Indentation image measurement and analysis software, support automatic measure mode and manual measure mode, generate test report automatically in word / Excel format; Software can control machine turret and control machine do test work |
| Maximum Height | 90mm |
| Throat Depth | 95mm |
| Instrument Size | 405 (L) x 290 (W) x 480 (H) mm |
| Net Weight | Approx. 40kg |
| Light Source | LED cold light source |
| Power Supply | 220V + 5%, 50/60 Hz |
| X-Y Testing Table | Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm |
| Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |
