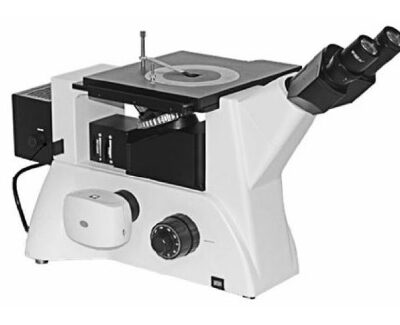

EI-IMM70 Trinocular Inverted Polarized Metallurgical Microscope with CCD and View Software

The EI-IMM70 is a sophisticated trinocular inverted metallurgical microscope designed for advanced micro-observation of metallurgical structures and surface morphology. Combining high-quality polarized optics with digital imaging capabilities, this instrument is ideal for research and analysis in metallography, mineralogy, and precision engineering.

Key Features & Benefits

• Inverted Design for Versatile Sampling: Enables easy analysis of large, heavy, or irregularly shaped specimens by placing them on the stage with the objectives positioned underneath.

• Polarized Imaging for Detailed Analysis: Equipped with polarized light capabilities to reveal grain structures, phase composition, and optical properties of materials with exceptional clarity.

• Trinocular Head with CCD Integration: Allows simultaneous visual observation and digital image capture, facilitating real-time documentation, measurement, and analysis.

• Advanced Viewing Software: Includes professional view software for image capture, processing, and analysis, enabling precise measurements and detailed reporting.

• High-Quality Optics: Provides sharp, high-resolution images essential for accurate evaluation of microstructures and surface morphology.

Specification:

Model	EI-IMM70
Optical	Magnification	100X, 200X, 500X, 1000X
	Plan Achromatic Objective	10X 20X 50X 100X Dry
	Numerical aperture	0.25 0.4 0.7 0.85
	Working distance	5mm, 8.8mm, 3.68mm, 0.40mm
	W F Eyepiece	WF 10x/20mm
Eyepiece	10×(focusing) 0.1/20mm micrometer 0.01/1mm
Frame	Configuration	Inverted, optical trinocular tube, gemel type, obliquity 45°, pupil 55-75mm ±5% adjustable
	Revolving objective	5 holes ball bearing circumvolve
	Double layer stage	Stage size:242x200mm
		Moving range 30×30 mm X-Y resolution 0.1mm
	Rotary stage	Loading plate Φ130mm, minimal clear aperture is less then Ф20mm.
	Focus system	Coaxial jiggle Up/down movement: 30mm
		Fine adjustment: 0.002mm Up and down locking & torsion adjustment
Light System	Bright-field/ Bright &Dark-field illumination	Kohler illumination; Variable aperture & field diaphragm
		Adjustable brightness
		Halogen Lamp: 30W/12V
		Filters: Yellow/Green/Blue/N/T
	Polarizing	Polarizing and checking plate
Power supply		AC90-240V/50-60Hz 45W
Dimensions		500(L) x 360(W) x 630(H)mm
Net Weight		Approx. 12kg



EI-IMM70 Metallurgical Microscope Pdf
