All Products >> Metallographic & Metallurgy >>Metallographic Cutting Machine

Product Details

Metallographic Cutting Machine is mainly used to cut the metallographic samples and materials.

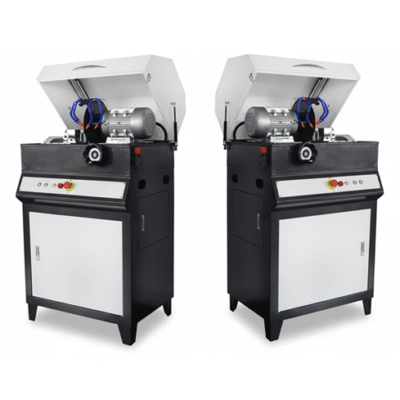

Metallography cutting machine

Metallographic cutting machine equipped with large cutting space and T-slot work table, therefore these machines able to cutting rectangle and thick specimens up to 100mm. The both separate vice is very convenient for operator to clamp various work pieces. It is the ideal equipment to prepare high-quality specimens for the automotive, aerospace, mining enterprises and other manufacturing industries, metallographic laboratory for cutting various samples.

Features

  1. Large cutting chamber with observing window.
  2. Equipped with 65L cooling fluids tank.
  3. Non-burning loss swing type cutting means which improved the cutting quality.

Specification

Model

EI-CM100

EI-CM120

Max. Cutting Diameter (mm)

Ø100

Ø120

Effective sample length (mm)

200

Cutting feed

manual

Cutting Speed

2800 rpm

Cutting Area (mm)

250 x 300

Cutting disc (mm)

Max. Ø 350

Arbor size (mm)

Ø 32

Cooling System

Pump / 65 L Cooling Tank

Rate Voltage

415v, 50Hz

Dimension (mm)

1650 x 680 x 740

Net weight

Approx. 150kg

Approx. 180kg

Standard Accessories

-Step-down Transformer 4kW

-Cutting Disc x 10pcs (Ø350) for Steel, Alu-alloy, copper

-Coolant Fluids

-Tools

-Locking Vises (left & right)

-Water hose




PDF Data Sheet – Metallographic Cutting Machine
