Laboratory Hydraulic Hot Press Machine Malaysia: Precision Molding and Testing

The Laboratory Hydraulic Hot Press Machine is a sophisticated processing system designed for molding and forming sheet materials under controlled temperature and pressure conditions. The machine positions casting molds between electrically heated platens, applying precise pressure and temperature to create standardized test specimens and composite materials.

Key Features & Benefits

• Fully Automated Operation: Features automatic rise, constant pressure maintenance, and precise temperature control with programmable multi-segment pressure profiles.

• Advanced Heating System: Incorporates P.I.D temperature control with electrical heating modules, ensuring accurate thermal management up to 500°C.

• Precision Hydraulic Control: Utilizes a closed-loop hydraulic system with automatic pressure compensation, delivering consistent force application and repeatable results.

• Flexible Processing Options: Supports both heating and cooling cycles with configurable pressure platens, enabling diverse material processing applications.

• User-Friendly Interface: Equipped with LED timer display and intuitive controls, simplifying operation and process monitoring.

Specification:

Laboratory Hydraulic Hot Press Machine

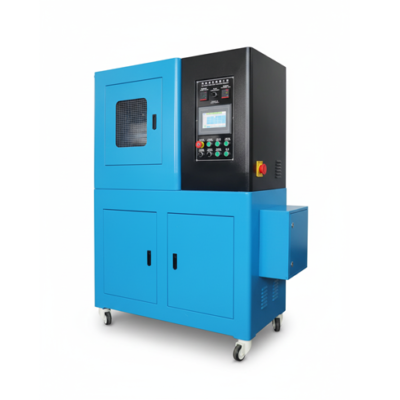

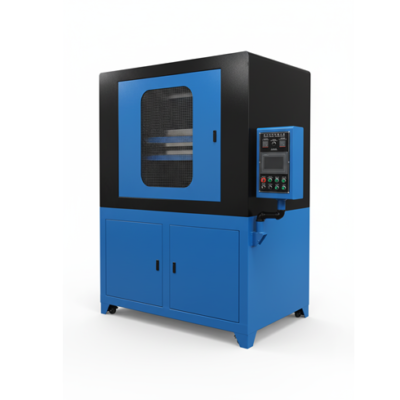

Model	EI-HHP50	EI-HHP100
Capacity	50 ton pressure adjustable	100 ton pressure adjustable
Temp. Range	Room temp. to 500°C
Temperature Accuracy	±2.5%
Heating System	P.I.D control
Timer	LED display, Time range up to 99min/9.9hr
Heating Type	Electrical Heating module
Heating Rate	8-10°C/minute heat up to 170°C
Pressure Platen	Auto & manual control, single or dual compression space, heat platens or cold platens
Pressure Accuracy	±2%
Pressure Platen Dimension	600x600mm	1000x1000mm
Distance of Pressure Platen	115mm
Cooling System	Tap water cooling
Hydraulic system	Hydraulic flow closed-loop control system, oil pump drives high-performance electro-hydraulic with high-precision resistance free oil cylinder piston execution equal rate control mode, with pressure automatic compensation function The time for first and second pressurization can be pre-set
Hydraulic Cylinder Stroke	180mm
Hydraulic Cylinder Speed	11mm/s
Pressure Gauge	0~210kg/sq.cm
Dimension	1700×1400×1700mm	2100x1800x1800mm
Rate Voltage	AC415V, 50Hz
Weight	Approx. 2000kg	Approx. 3000kg



Pdf Data Sheet – Laboratory Hydraulic Hot Press Machine
