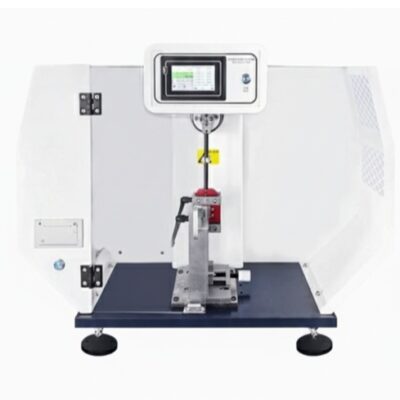

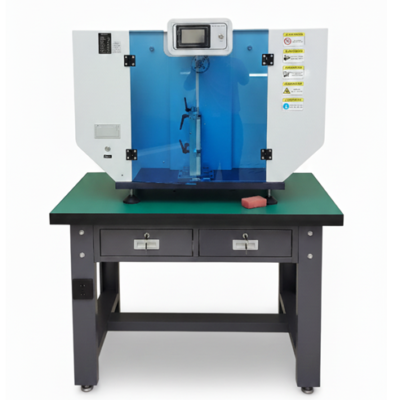

EI-CZ50T Touch Screen Izod Charpy Impact Tester Malaysia
The EI-CZ50T Touch Screen Izod Charpy Impact Tester is a precision instrument designed to determine the impact resistance and fragility characteristics of rigid plastics, composites, and other materials. By measuring the energy absorbed when a pendulum strikes a notched specimen, it provides critical data on material toughness, ductility, and resistance to shock loading under standardized conditions.
Featuring an intuitive touch screen interface, this tester simplifies operation while delivering highly accurate and repeatable results for quality control and research and development.
Key Features & Benefits
-

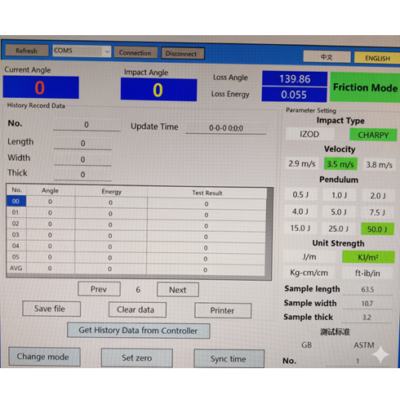

Advanced Touch Screen Control: User-friendly digital interface for easy test configuration, data display, and result calculation, minimizing operator error.
-
Precision Energy Measurement: Accurately determines the impact energy absorbed by the specimen by calculating the difference between the pendulum’s initial potential energy and its residual energy after fracture.
-
Dual Test Capability: Supports both Izod (cantilever-beam) and Charpy (simply-supported-beam) test methods with appropriate fixtures, offering versatile testing solutions.
-
Robust & Reliable Construction: Built with a heavy-duty frame and precision bearings to ensure consistent swing and accurate energy transfer, in compliance with international standards.
-
Automated Data Management: The system automatically calculates and displays the impact energy, streamlining the testing process and facilitating data recording.
Specification:
| Item | Touch Screen Plastic Izod / Charpy Impact Testing Machine | |
| Model | EI-CZ50T | |
| The pendulum energy
|
Izod | Charpy |
| 1J, 2.75J, 5.5J, 11J, 22J | 1J, 2J, 4J, 5J, 7.5J, 15J
25J, 50J |
|
| Pendulum drop angle | 150° | |
| Impact velocity | 3.5 m/s | 2.9 m/s
3.8 m/s |
| Length of pendulum | 335mm | 230mm
395mm |
| Striker edge radius | R=0.8 | R=2mm |
| Rate voltage | 240V 50HZ | |
| Pendulum Arm | Increasing Mass | Pendulum striker |
| Izod 1J | – | Izod 1J |
| Izod 1J | Red 2.75 | Izod 2.75J |
| Izod 1J | Red + Silver 5.5 | Izod 5.5J |
| Izod 1J | 11 | Izod 11J |
| Izod 1J | 22 | Izod 22J |
| Charpy 1J | – | Charpy 1J |
| Charpy 1J | 2 | Charpy 2J |
| Charpy 1J | 4 | Charpy 4J |
| Charpy 1J | 5 | Charpy 5J |
| Charpy 7.5J | – | Charpy 7.5J |
| Charpy 7.5J | 15 | Charpy 15J |
| Charpy 25J | – | Charpy 25J |
| Charpy 25J | 50 | Charpy 50J |
Pdf Data Sheet – EI-CZ50T Touch Screen Izod Charpy Impact Tester
