Hydrostatic Pressure Burst Tester – Computerized Hydrostatic Pressure Testing Machine

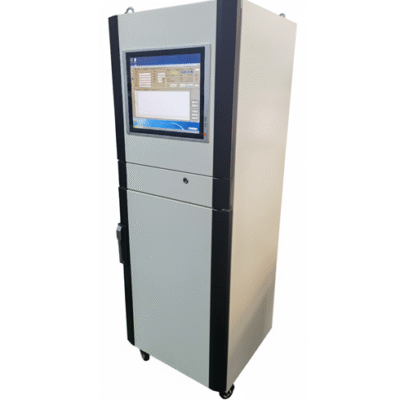

Computerized Hydrostatic Pressure & Burst Test Machine consisted with pressure control system, pressure source, constant temperature system, end-cap and professional operating software. It is used to perform time to failure test, constant internal pressure test, short or long term pressure test at different temperature, times and pressure combination of thermoplastic pipes.

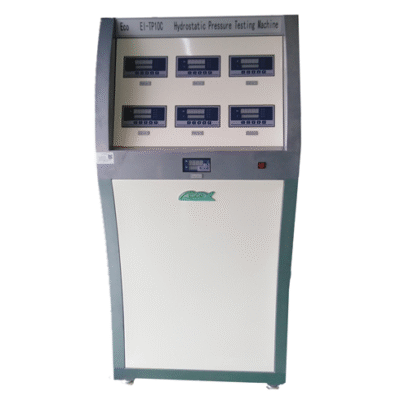

Control unit:-
• Dual control system – Computer and control panel
• Automatic test saving when computer power off
• Over pressure protection
• Real time graph explore
• Rupture identification
• Leakage judge

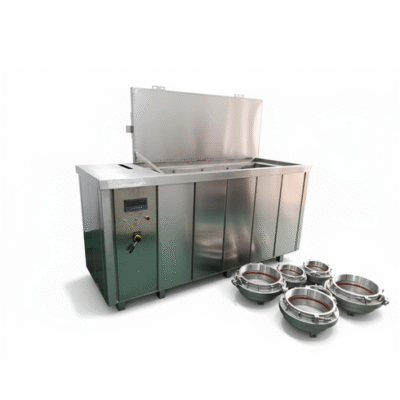

Constant temperature tank:-
• Thick heat insulation of rigid polyurethane foam for constant temperature and energy saving performance.
• Stainless steel internal and outer body
• High reliable and precision pressure transducer, electromagnetic valve, electric pump
• High pressure resistance tube and without interference on each other
• 3, 6, 10, 12 test stations are available for multiple test separately

Standard:
ISO 1167, ISO 9080, ISO 13479, EN 921, ASTM F1335, ASTM D1598, ASTM D1599, GB/T 6111, GB/T 15560, GB/T 18997.1, GB/T 18997.2

Specification:

Model EI-TP10C
Pressure Range 0-16 MPa
Test Range 0-10 MPa
Temperature Range Ambient ~ 95°C, 15°C ~ Ambient temperature with refrigeration system
Pressure Resolution 0.001 MPa
Temperature Resolution ±0.1°C
Temperature Accuracy ±1°C
Timer Range 0 ~ 9999H
Pressure Station 6
Rate Power 12 kW
Rate Voltage 415V 50Hz
Accessories
Test Tank  1000 x 800 x 1000mm Branded computer set i3 win11
Refrigeration System  1 HP Desktop Printer Canon
End Cap stainless steel – Meet user requirements Step-down Transformer  20KVA



PDF Data Sheet

EI-TP10C Computerized Hydrostatic Pressure Testing Machine
