Computerized servo control horizontal testing machine is used to determine the physical strength of cable, wire, rope or chain.

The testing machine quipped with computer control, servo drive system along with professional operating software to perform force and displacement test. It is come with safety device as travel limit switch, over-load protection and protective shield as well.

Applicable for cable & wire, rope, chain, belts, colleges and universities education, research and development department, etc.

Features
  • Safety protection – Load-cell, emergency switch, solid safety shield, displacement limit protection, over current protection
  • Pneumatic sample clamping grips – optional
  • Computerized tensile test system
  • Compact design and sturdy steel structure
  • Servo system with pressure difference regulation ability to reduce energy consumption.

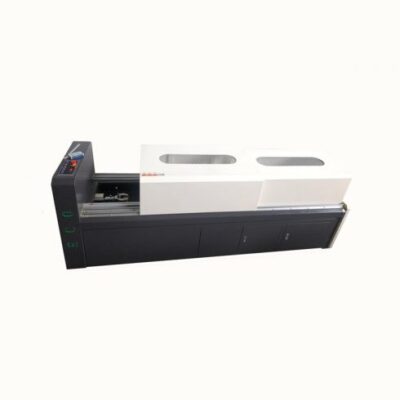

Horizontal Tensile Machine

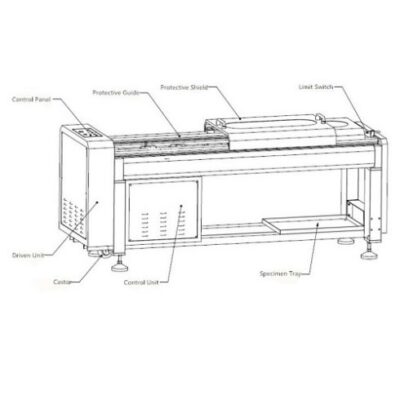

Horizontal Tensile Machine

Specification
Model EI-3028HM
Capacity 50 KN
Load accuracy ≤ 1%
Effective Displacement 2000 mm
Testing speed 0.1 – 150 mm/min
Transmission Control Servo Motor + servo Drive
Dimension 2500 × 650 × 900 mm or customized
Rate Voltage Single phase 240 V, 50 HZ

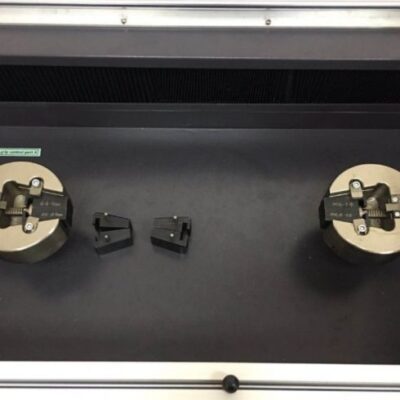

Fixture Self-tighten Tensile Grips
Safety Protection Travel limit devices, Emergency stop function, Safety Shield



PDF Data Sheet
