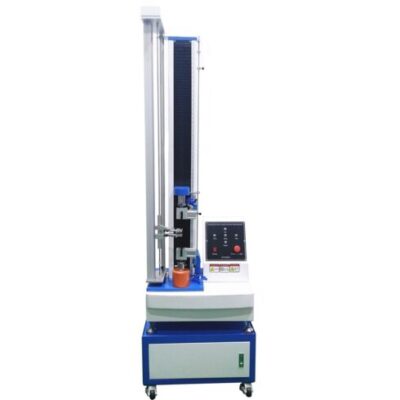

Glove Testing Machine – Single Column with Long-Travel Extensometer
Glove testing machine is designed to performing force test up to 5kN / 500kgf and perform test as tensile, compression, bending, peeling, shear or cycle test on metallic or non-metallic materials as well..
Applicable for medical nitrile and latex glove, condom, cable, textiles, plastic, research laboratories and many other industries, it is the basic equipment for quality control and physical test.

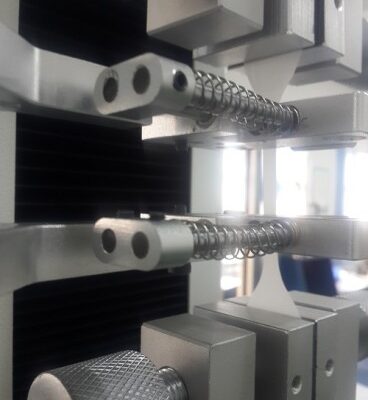

Elongation – Extensometer
Specification
| Model | EI-UT5T | EI-UT5 |
| Max. Load Frame | 500 kg | |
| Capacity | 5 kgf ~ 500 kgf / 50 N ~5 kN | |
| Accurate grade | Conforms to EN 10002-2 Grade 1, ISO 7500-1
Class 1, ASTM E4, JIS B 7721 Class 1 |
|
| Load range | 0.2% ~ 100% | |
| Measuring accuracy | ±0.5% | |
| Load Resolution | 1/200000 | |
| Load Cell Channel | 1 | More |
| Effective tensile space
(max. cross-head travel) |
Standard 800 & Extra-Height 1200 mm
(1150 mm & 1550 mm without fixtures) |
|
| Range of testing speed | 1 ~ 500 mm/min | |
| Accuracy of displacement | Tolerance: ±1% | |
| Deformation of measured system | Min span :10 mm, Max range of deformation 800 mm
Extended deformation span: 25 mm, 50 mm, 100 mm, range of deformation 5 mm, 10 mm, 25 mm |
|
| Accuracy of deformation | Tolerance :±1% | |
| Safety | Electronic-limit protection, Emergency stop button, over-current protection | |
| Platform moving device | Touch screen controller | Software & keypad control panel |
| Return home function | Auto & Manual | |
| Overload protection | Overload 10%, automatic protection | |
| Dimension | Standard 550 x 420 x 1800 mm | |
| Rate Voltage | 240 v, 50 Hz | |
| Rate Power | 0.75 kW | |
| Weight | Approx. 150 kg | Approx. 170 kg |
| Standard Accessories | ||
| Load-Cell | USA CELTRON S-Type | |
| Driven | JAPAN Panasonic servo drive + motor | |
| Display | 7’ TFT color touch screen | 21” LCD monitor |
| Computer | – | Branded Commercial Computer with Window 11 |
| Printer | Build-in mini thermal printer, 3 rolls of thermal roll paper | Branded Desktop Color inkjet, 1 set of Black & Color cartridges |
| Fixtures | Common joint with lock-pin, One set of Tensile grip | |
| Extensometer | Long-travel EXTENSOMETER
Elongation: 1200 mm Metric Gauge length at 10, 20, 25, 50, and 100 mm Maximum strain: up to 1000% on 20 mm Gauge Length |
|
| Instruction | Instruction Manual & Software on CD | |
| Optional
Pneumatic grip with control device ( For Rubber Specimen), 3-point bending fixture, Peeling grip (90° & 180°), |
||
| Tools | Included | |
| Warranty | 12 months | |
Standard
TAPPI T-494, TAPPI T829, ISO 1924, ISO12625-4, AS/NZ1301.448s, BS EN ISO1924-2, CPPA D34, DIN 53112, SCAN P38 ASTM D1683, ASTM D412, ASTM D4964, ASTM D5733 / 5735, BS 3320
(Breaking Strength) ISO13934.1, ASTM D5035
(Tear Strength) ISO13937.2, ASTM D2261
(Single Yarn Strength) ISO2062, ASTM D2256
(Seam Slippage) ISO13936.1/2, ASTM D434
(Tensile) ASTM D828, ASTM D638, ASTM D882, ASTM D6319, ISO 1924, TAPPI T 494, EN 455-2
(Peel) ASTM D3330, D1876
(Tear) ASTM D1938
(Seal) ASTM F88
(Bond) ASTM F904
(Puncture) ASTM F1306, ASTM D4032, ASTM D120, ASTM F1342, ASTM D5748
