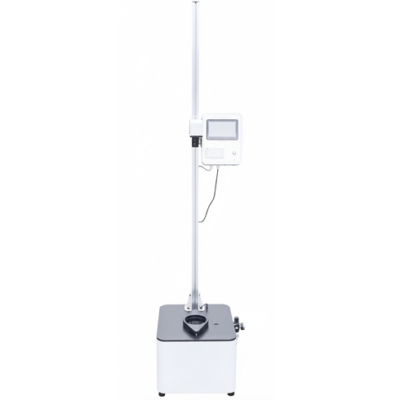

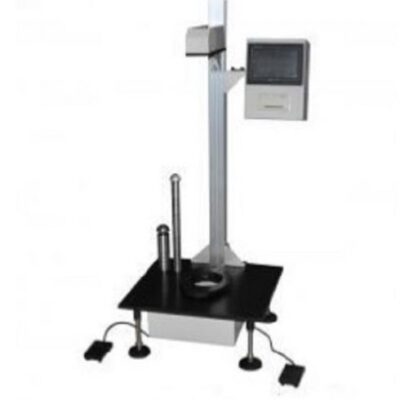

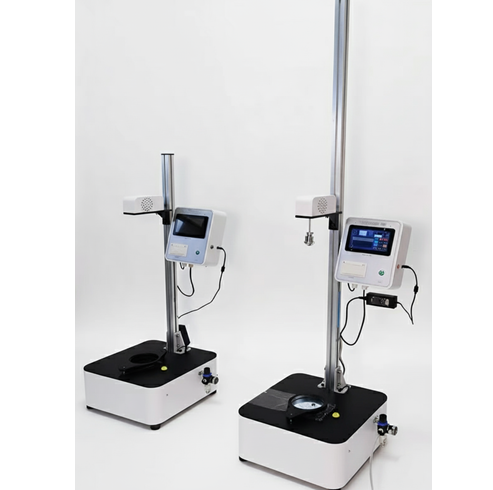

Fall Dart Impact Tester Malaysia EI-FD01: Precision Impact Resistance Evaluation
The Fall Dart Impact Tester EI-FD01 is a state-of-the-art instrument designed to evaluate the impact resistance of flexible materials. Utilizing a free-falling dart mechanism, it accurately assesses the durability of flexitanks, plastic films, sheets, foils, and paper with thickness under 1mm, thereby providing critical data on a material’s ability to withstand external impact and destruction.
Consequently, its primary application includes impact testing of flexitanks, plastic films, sheets, foils, and paper (<1mm thickness).
Features & Benefits:
-
Touch Screen Operation: An intuitive interface allows for easy setup and control, thereby streamlining the testing process and minimizing operator error.
-
Dual Testing Methods: With both Method A and Method B available, the tester offers versatile compliance with various international standards, thus enabling comprehensive impact assessment.
-
Precision Dart Release: The electromagnetic suspension and automatic release mechanism ensures the falling dart is dropped from a perfectly fixed height every time, which guarantees consistent and repeatable impact energy.
-
Secure Sample Clamping: A pneumatic clamping system holds the specimen firmly and uniformly, thereby preventing slippage during impact and ensuring reliable, accurate test results.
-
Flexible Control Options: A manual release switch provides the operator with direct control over the test initiation, further enhancing workflow flexibility.
-
Integrated Data Output: The built-in micro-printer immediately provides a physical record of test data, thereby facilitating easy documentation, analysis, and quality reporting.
Standard Compliance: ASTM D1709, ISO 7765-1-1988, JIS K7124-1, GB/T 9639.1-2008
Specification:
| Model | EI-FD01 | |
| Measuring method | Method A or method B (Optional) | |
| Measurement range | A:50～2000 g | B:300～2000 g |
| Dart Diameter: | Method A 38±1mm Method B 50±1mm |
|
| Impact Height | 660mm / 1500mm | |
| Measuring accuracy | 0.1 g (0.1 J) | |
| Clamping | Pneumatic control | |
| Sample size | 150 × 150 mm | |
| Power | 220V, 50Hz | |
| Dimension | A: 500 (L) x 450 (W) x 1200 (H) mm B: 500 (L) x 450 (W) x 2200 (H) mm |
|
| Weight | 70 kg | |
PDF Data Sheet – Fall Dart Impart Tester pdf
