GSM Cutter / Fabric Circular Sample Cutter / Fabric GSM sample Cutter Malaysia

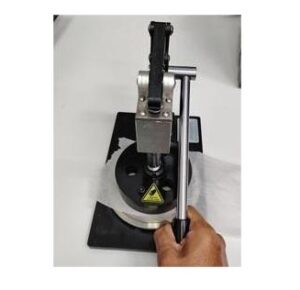

This manual sample press machine is to punch a test specimen from a formed sheet, such as plastic (Elastomer), film, vulcanized rubber, paper, fabrics, etc. suitable for various type of dumbbell, circle, rectangle shape of die blocks, user friendly, easily operate this manual press by one hand.
Widely used for paper / paper board, plastic film, textiles, foil and Bulk bag
How to determining the fabric’s Grams per Square Meter (GSM)?
Cut: Place the fabric on a resilient backing mat. Position the cutter on the fabric and press the handle down firmly to cut a perfect circular sample.
Weigh: Remove the cut sample and weigh it on a precision balance nearest to 0.01g
Calculate: The GSM is calculated using the formula:
For a 100 cm² cutter: GSM = Weight in grams × 100
*(This works because 100 cm² is 1/100th of a square meter. Multiplying the sample’s weight by 100 gives the weight per square meter).*
Specification
| Model | EI-P20M |
| Cutting Area | 100cm² |
| Maximum Stroke | 20mm |
| Vertical Space | 45mm |
| Platen | Ø120 x 10mm |
| Working Table | Ø135mm |
| Dimension | 260 x 170 x 420mm |
| Weight | Approx. 8kg |
| Accessories | Tools x 1
Cutting Board x 1 Compression Platen Die Block – 100cm |
