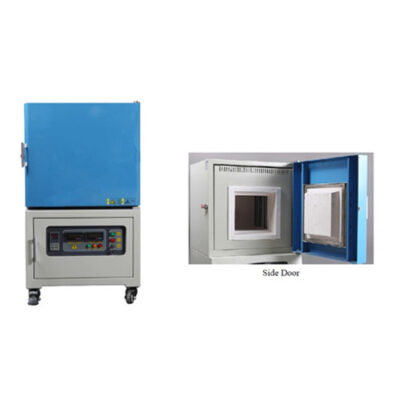

EI-F1400 Box-Type Electric Lab Furnace is adopted imported silicon carbon rod as heated element; it
adopts the dual shell structure and intelligent auto-control temperature system, SCR control, phase shifting
trigger,
Applicable for Universities, research institutes, industrial and mining enterprises to do the powder sintering, sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.
Specification
| Model | EI-F1400A | EI-F1400B | EI-F1400C |
| Internal dimension (D * W * H)mm | 160 x 150 x 150 | 300 x 250 x 250 | 400 x 300 x 300 |
| Overall Size (D * W * H)mm | 520 x 500 x 750 | 630 x 650 x 880 | 670 x 780 x 1050 |
| Power Supply | 220V, 50Hz | 220V, 50Hz | 415V, 50Hz |
| Rated Power | 3kW | 6kW | 8kW |
| Weights | 80kg | 140kg | 190kg |
| Furnace Chamber | High purity alumina polycrystalline fibers curing furnace, good insulation properties | ||
| Heating Element | Silicon Carbide | ||
| Temperature Measuring Element | Thermocouple | ||
| Temperature Control Mode | The temperature control system uses artificial intelligence technology, with PID control, self-tuning function, 50 the heating and cooling program |
||
| Working Temperature | ≤1300°C | ||
| Maximum Temperature | 1350°C | ||
| Recommend Heating Rate | 10°C/min | ||
| Constant Temperature Accuracy | ±1°C | ||
Standard Accessories
Door Brick, Crucible tongs, Oven Gloves each one piece
Optional Accessories
Furnace Hobs, A Variety of Corundum Crucible, Computer Control
Software and Paperless Recorder, etc.
