Edge Crush Testing Fixture EI-ECT50V: Precision Clamping for Edge Crush Testing

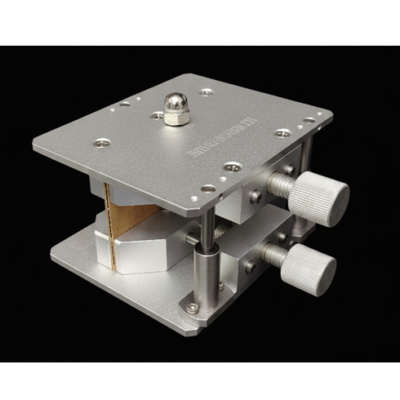

Edge Crush Testing Fixture EI-ECT50V is a precision-engineered clamping device designed specifically for Edge Crush Testing (ECT) of corrugated board. This essential accessory securely holds butterfly-shaped test specimens in a vertical orientation, enabling accurate measurement of a material’s upright crush resistance between the platens of a ring crush tester.
Key Features & Benefits
-
Precision Vertical Alignment: Ensures butterfly specimens are held in perfect vertical orientation, guaranteeing accurate and consistent ECT results.
-
Durable Material Construction: Crafted from high-quality alloy aluminum and stainless steel, providing exceptional durability and corrosion resistance for long-term laboratory use.
-
Compact & Lightweight Design: With dimensions of 160×110×70mm and weighing only 2kg, offering easy handling and convenient storage.
-
Standard Compliance: Manufactured in strict accordance with JIS Z0401 standards, ensuring internationally recognized test accuracy.
-
Secure Specimen Fixation: Firmly clamps both ends of butterfly specimens, preventing slippage or misalignment during compression testing.
Specification:
| Model | EI-ECT50V |
| Material | Alloy aluminium, Stainless steel |
| Dimension | 160 x 110 x 70 mm |
| Weight | Approx. 2 kg |
Why Choose the EI-ECT50V ECT Fixture?
The EI-ECT50V transforms standard ring crush testers into precise Edge Crush Test systems. Its robust construction and exacting design ensure that butterfly specimens maintain perfect vertical alignment throughout testing, delivering reliable data that accurately reflects corrugated board’s stacking strength and compression resistance.
