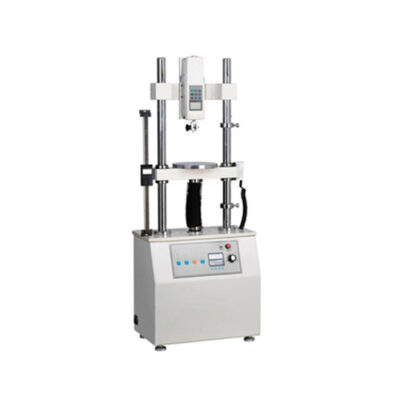

Double-column Vertical Test Stand: Versatile Mechanical Testing Platform

The Double-column Vertical Test Stand is a robust and versatile testing system designed for a wide range of mechanical tests. Featuring a stable double-column structure and advanced control capabilities, this test stand provides reliable performance for push-pull force measurement, insertion force testing, and destructive experiments across multiple industries.

Key Features & Benefits

• Enhanced Structural Stability: Double-column design ensures exceptional rigidity and alignment, providing consistent and accurate test results.

• Flexible Speed Control: Stepless speed regulation allows precise adjustment of testing speed, enabling optimal testing conditions for different materials.

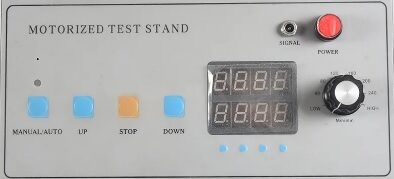

• Dual Control Modes: Manual and automatic control switch functionality, offering operational flexibility for both simple and complex testing procedures.

• Compact & Efficient Drive: Gear drive system with compact structure, delivering stable power transmission and reliable long-term performance.

• Universal Compatibility: Simple operation with ability to use various clip types, making it adaptable to numerous testing applications and sample geometries.

Specification

Model	EI-TS500	EI-TS1000	EI-TS2000	EI-TS3000
Capacity	5000N / 500kg	1000N / 1000kg	20000N / 2000kg	30000N / 3000kg
Travel Stroke	220 to 1000mm
Test Speed	60 ~ 220mm/min, adjustable	50 ~ 180mm/min, adjustable
Control Mode	Manual or Auto Cycle
Rate Voltage	240, 50Hz
Dimension	400 (L) x 250 (W) x1050 (H)mm
Weight	Approx. 56kg to 120kg





PDF Data Sheet – Double Column Test Stand
