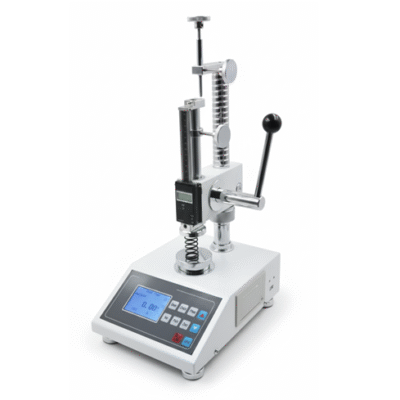

Digital Spring Tester EI-ATH-C Series: Advanced Spring Testing Solution

The Digital Spring Tester EI-ATH-C Series is a sophisticated special-purpose instrument designed for precise measurement of deformation and load characteristics in both extension and compression springs. This advanced testing machine accurately determines the working load of springs at specific working lengths, providing essential data for quality control and product development.

Featuring an advanced highly integrated chip microprocessor, liquid crystal display, and robust metal enclosure, this tester delivers exceptional performance with significantly improved anti-interference capabilities for reliable operation in industrial environments.

Key Features & Benefits

• Advanced Human Machine Interface: Features a clear English liquid crystal display with intuitive navigation for enhanced user experience.

• High-Precision Measurement: Delivers exceptional accuracy and resolution for reliable spring characteristic analysis.

• Multi-Unit Flexibility: Offers three selectable measurement units with convenient inter-conversion capabilities.

• Localized Calibration: Allows users to set local gravity acceleration for precise testing and accurate unit conversions.

• Comprehensive Data Management: Stores 99 test datasets with direct access for review, storage, and deletion.

• Versatile Measurement Modes: Enables seamless switching between real-time, peak-value, and automatic peak-value patterns.

• Advanced Customization: Provides extensive setup options including limit settings, storage parameters, and automatic shutdown configuration.

• Intelligent Data Analysis: Features acceptance/rejection judgment with comprehensive statistical analysis including max, min, and mean values.

• Enhanced Connectivity: Adopts MODBUS-RTU standard with USB interface for seamless configuration and PLC integration.

Specification:

Model (EI-ATH-C)	200	300	500	1000	2000	3000	5000
Maximum Testing Load  (N)	200	300	500	1000	2000	3000	5000
Resolution (N)	0.01			0.1
Platen (mm)	48			108
Maximum Free Length of Measurable Spring (mm)	150			200
Travel Displacement (mm)	90			150
Displacement Resolution (mm)	0.01
Accuracxy	±1%
Power Supply	240V, 50HZ
Dimension	570 x 280 x 300mm			790 x 610 x 320mm
Weight	Approx.18kg			Approx. 70kg



Pdf Data Sheet – EI-ATH-C series
