All Products >> Weighing Balance >>Densimeter Solid & Liquid

Product Details

Densimeter Solid & Liquid – Density of measurement is very important for both of raw materials and finished products. Used to ensure homogeneity to prevent product quality issues, such as strength and crack resistance can be affected.

We provide a simple, high accurate and cost-effective way to determined various density of solid, hydrophilic and liquid materials, such as metals, plastics, chemicals, lubricants and foods

Standard accordance to ASTM D 297-93, D 792-00, D 618, D 891, GB/T 1033, JIS K 6530, ISO 2781, GB/T 5526, 13531, 15223, 5009

Measuring Mode

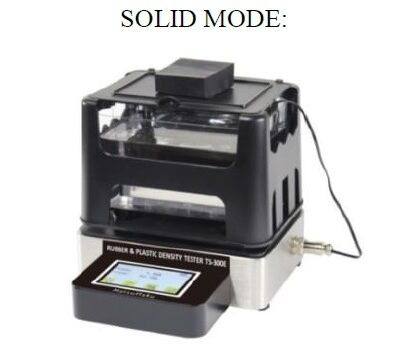

Solid mode – Adopting the buoyancy method of Archimedes principle, the machine can accurately and directly show the measuring result.

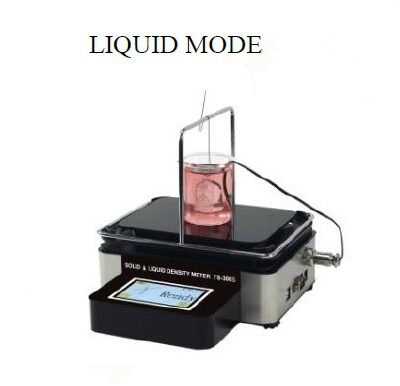

Liquid mode  – (Specific Gravity): Adopting the buoyancy method of Archimedes principle, water displacement method, it can accurately and directly show the measuring result.

Liquid Dense Test

Liquid Dense Test

Specification

Model TWS-300S TWS-500S
Measuring range 0.01 ~ 300 g 0.01 ~ 500 g
Density precision of solid mode 0.001 g/cm³
Precision of liquid mode S.G = 0.001 g/ml, Concentration 0.1%
Testing time 5 seconds
Result display ( Solid)  Appearance (density) g/cm³, (Volume) cm³ and (Mixing ratio) %
Result display (liquid) Specific Gravity (S.G) g/ml, (concentration) %
Mixture density Can set the mixture ratio of mixtures
Accessories
  • Standard  weight
  • Glass measuring kit
  • Glass Beaker
  • Hooks
  • Frame
  • Glass beaker
  • Steel wire basket
  • Tweezers
  • Thermometer
  • Anti-corrosive tank



Demo Video



Solid                                                                                         Liquid

PDF Data Sheet

Density Tester – Solid & Liquid pdf
