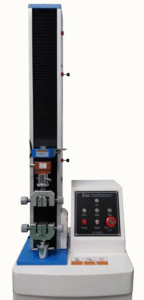

A Computerised servo control universal testing machine (UTM) is a sophisticated piece of equipment used to determine the mechanical properties of materials. In fact, it is the modern, high-precision evolution of traditional mechanical testers. What’s more, its key advantage lies in its ability to perform a wide range of tests… For example, it can handle tensile, compression, and bending tests on everything from metals and plastics to textiles and cable.

Features:

• Computer & Software: This is the user interface and data hub. Modern software provides:

  *Intuitive test setup and method creation.

• Real-time graphical display of the stress-strain curve.

• Automated calculation of material properties (Yield Strength, Tensile Strength, Modulus of Elasticity, Elongation, etc.)

• Load Cell: A highly accurate that measures the force applied to the specimen.

• Extensometer: An optional but crucial device that clamps directly onto the specimen to measure elastic elongation and strain with extreme accuracy.

• Drive System:

  *Servo Motor: An electric motor that provides precise and smooth motion. It is highly efficient, quiet, and clean.

  *Ball Screw: Translates the rotary motion of the servo motor into precise linear motion of the crosshead.

• Wide Range of Control Modes: Can seamlessly control tests based on Position, Speed, or Force, and can switch between them during a single test. Comprehensive data storage, reporting, and export capabilities.

• Versatility: A single machine can perform a vast library of different tests simply by changing the grips and selecting the correct software method.

• Powerful Data Analysis: The software automatically identifies key points on the stress-strain curve and generates detailed reports, eliminating manual calculation errors.

• Safety: Built-in software and hardware limits protect both the machine and the operator from overloads and other hazardous conditions.

• User-Friendly: Complex tests can be pre-programmed, allowing less experienced operators to run them reliably.

Model	EI-UT1	EI-UT5	EI-UT20
Maximum Load Frame	100kg	500kg	3000kg
Load Cell Capacity	10, 25, 50, 100kgf	10, 25, 50, 100, 250, 500kgf	10, 25, 50, 100, 250, 500, 1000, 2000, 2500kgf
Machin Type	Bench Top		Floor
Accuracy of Force	±0.5%
Effective Measuring Range	0.2% ~ 100% (Full Scale)
Measuring Accuracy	< ±1%
Resolution	Max. load 1/200000, constant the resolution
Load Sensor	Basic configuration one or two sensors
Effective vertical Space	600mm	800mm
Test Speed	Up to 500mm/min
Accuracy of Displacement	< ±1%
Gauge Length of Elongation	Min span :10mm, Max range of deformation 1000mm                 Extended deformation span: 20mm, 25mm, 50mm, 100mm
Accuracy of Elongation	< ±1%
Safety	Crosshead travel limit protection, overload protection (software)
Return Back	Manual or automatic operation, after the test, the crosshead return to initial position with the highest speed by manual or automatic operation
Machine Size	4000m x 350 x 1000mm	660 x 480 x 1800mm	970 x 570 x 2150mm
Rate Voltage	240V, 50Hz
Power	0.2kW	0.4kW	0.75kW
Weight	Approx. 80kg	Approx. 120kg	Approx. 300kg



Data Sheet Computerised servo control universal testing machine
