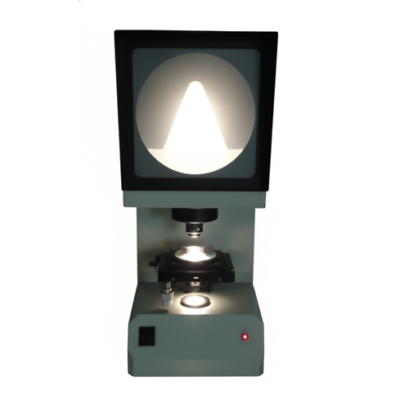

Charpy Specimen Notch Projector EI-CSP50: Precision Notch Verification

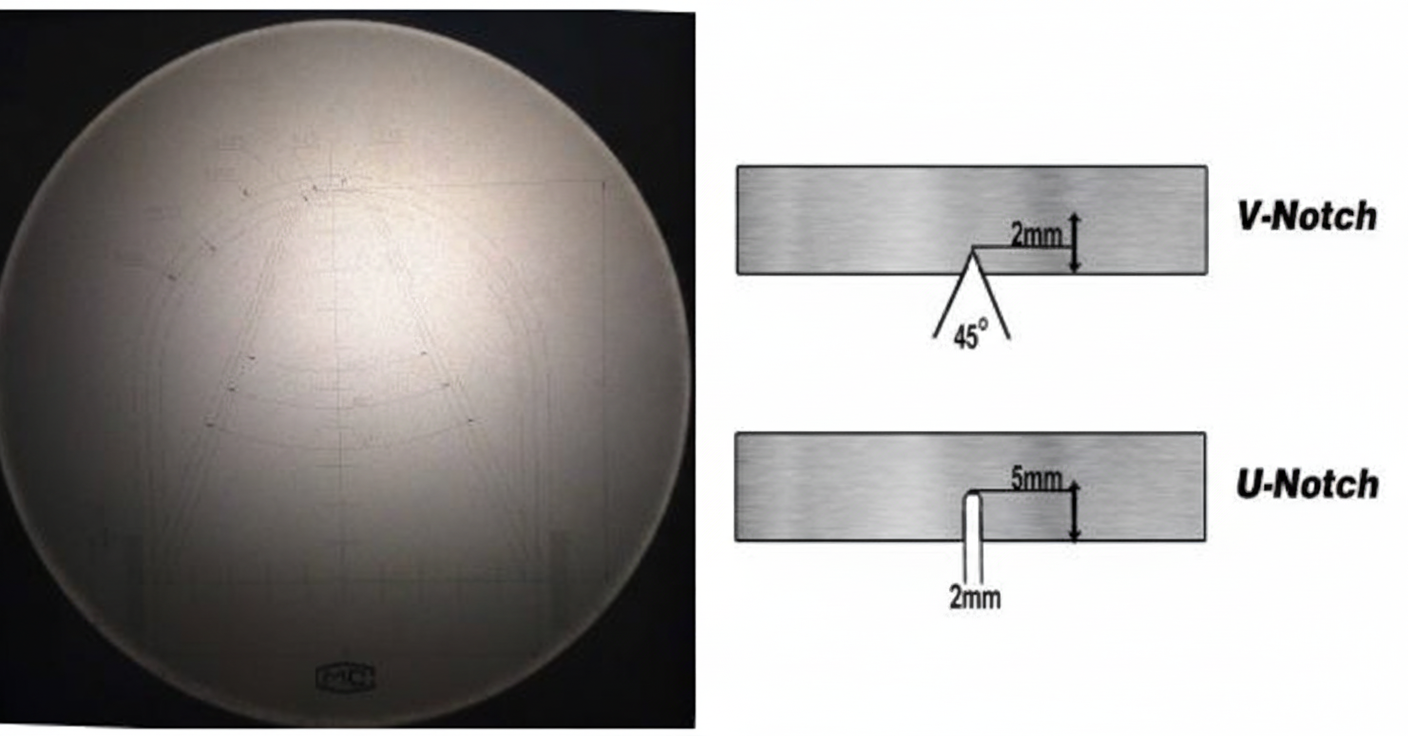

A specialized optical inspection instrument designed for accurate verification of U and V-shaped notches on Charpy impact test specimens. Combining high magnification with precise mechanical controls, this projector ensures notch geometry complies with international testing standards through direct, efficient visual inspection.

Key Features & Benefits

• High-Precision Magnification: 50x magnification provides detailed, clear projection of notch profiles, enabling accurate measurement and verification of critical notch dimensions.

• Versatile Positioning System: Table displacement (vertical: 10mm, horizontal: 10mm) with 360° rotation capability, allowing comprehensive inspection from all angles without repositioning the specimen.

• Large Display Screen: Ø200mm projection screen, providing ample viewing area for detailed notch examination and measurement.

• Stable Illumination: Tungsten lamp 12V light source, ensuring consistent, bright illumination for clear profile projection.

• Precision Height Adjustment: 12mm vertical movement range, enabling optimal focus and alignment for different specimen sizes.

• Direct Inspection Method: Simple operation and straightforward structure, facilitating rapid specimen verification without complex procedures.

Specification:

Model	EI-CSP50
Magnification	50x
Display Screen	Ø200mm
Table Displacement	Vertical: 10mm, Horizontal: 10mm
Up & Down	12mm
Rotation Range	0 ~ 360°
Light Source	Tungsten Lamp 12V
