All Products >> Paper & Packaging >>Bursting Strength Tester

Product Details

Bursting strength tester is mainly used to determine the force of burst through a test sheet of corrugated board or paper. It is very important and common test instrument to perform test of burst strength in paper mill, packaging industries, R&D, foil industries, film industries.

Features

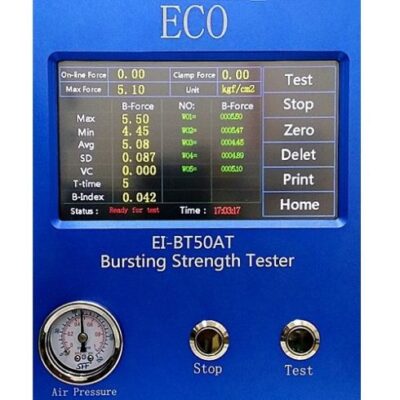

  1. User friendly, Large touch screen display
  2. ,Advance control system, single touch to automatic clamp ,test, reverse, data saved function.
  3. Equipped with build in thermal printer

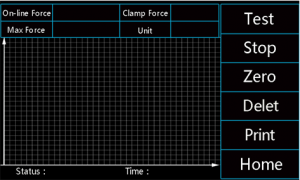

  4. Numeric interface and real-time testing graph – switchable
  5. Fully pneumatic for convenience operation and safety

Standard accordance to ISO 258, ISO 2759, GB-6545, JIS P 8112, L 1018, ASTM D 2210, TAPPI-T 403, BS 3424, ASTM 3786, ASTM D 774

Bursting strength test

Bursting strength test

Specification
Model EI-BT50AT EI-BT16AT
Specimen Corrugated Paper
Testing Range 250 – 5600 kPa 70 – 1600 kPa
Resolution 1 kPa
Measuring units kPa, kg/cm², Lb/in²
Accuracy 0.5 %
Pressured rate 175 ±5 ml/min 95 ±5 ml/min
Sample Clamp Pneumatic control
Sample clamping force (Variable)  > 690 kPa > 430 kPa
Resistance Pad Bulge 10 mm,18 mm 9 mm
  Film (170~220) kPa, (250~350) kPa 30 kPa
Pressure gauge  3.5~6 Kg/cm²
Rate Voltage 220-240 V, 50 Hz
Weight Approx. 50 kg
Accessories
  1. Rubber Membrane
  2. Glycerine fluid
  3. Instruction Manual
  4. Calibration Certificate


Demo Video


PDF Data Sheet – Bursting strength Tester
