All Products >> Rubber >>Bulk Densimeter

Product Details

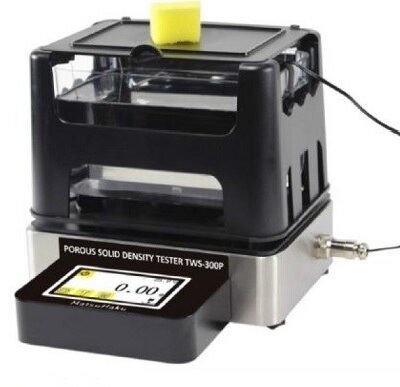

Bulk Densimeter / Bulk Density Meter – Particle density and Porosity of Porous / Absorbent Material, hydrophilic, Foam and Sponge

Introduction:

Bulk densimeter is a property of powders, granules, and other “divided” solids, especially used in reference to mineral components (soil, gravel), chemical substances, (pharmaceutical) ingredients, foodstuff, or any other masses of corpuscular or particulate matter. It is defined as the mass of many particles of the material divided by the total volume they occupy.

The total volume includes particle volume, inter-particle void volume, and internal pore volume.

Applicable for , Fine ceramic ,Brick, Powder metallurgy parts, Oil-bearing, Sponge / Foam, Rock / Stone, Absorbent materials

Feature:

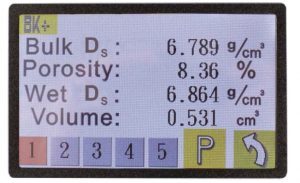

Report – Bulk density, Porosity, Wet density and Volume

Using Touch Screen Display with reverse functions

With RS-232 / printer Port – Thermal Printer and Computer

Temperature detection and compensation automation.

Temperatures of liquid – Auto detect by sensor and compensate for causing measurement error

All test results are displayed at once, high accuracy, user friendly, less maintenance, reducing human error.



Specification

TWS-300PC – Ceramic, Pill, Construction, Magnetic material and wood.

TWS-300PY – Minerals, Rocks, Sponge, Eva, EPDM, Refractor, Graphite.

TWS-300PM – Powder Metallurgy and oil-impregnated bearing.

Model GP-120P TWS-300P GP-300P
Measuring range 120g 300g 300g
Resolution 0.001 g 0.01g
Density precision 0.0001 g/cm³ 0.001 g/cm³
Volume precision 0.0001 cm³ 0.001 cm³
Porosity 0.001% 0.01%



Standard

ASTM B311, ASTM B328, MPIF 42, MPIF 57, JIS Z2505, JIS Z2506, DIN 2738



Standard Accessories

Temperature Sensor ( TWS series), Thermometer, Tweezers, Standard Weight, Power Cable, Instruction book, Calibration certificate.



Optional Accessories

Thermal Printer, RS232/USB data cable



Demo Video





PDF Data Sheet

Density Tester – Porous Materials pdf
