Auto Charpy Broaching Machine Malaysia: Precision Notch Preparation for Impact Testing

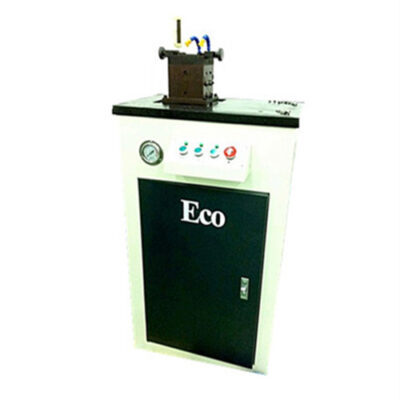

The Auto Charpy Broaching Machine is a state-of-the-art instrument designed for high-precision preparation of V and U-notch specimens used in Charpy impact testing. Utilizing advanced ball screw drives and linear guide systems, this machine ensures exceptional stability and geometric accuracy in notch creation, enabling complete sample preparation in as little as 10 seconds.

Key Features & Benefits

• High-Precision Drive System: Incorporates ball screw drives and linear guides, ensuring exceptional stability and geometric accuracy in every notch.

• Dual-Notch Capability: Features a duplex-bit broach that can process both V and U-notches, providing versatile sample preparation for different testing requirements.

• Rapid Operation: Completes sample preparation in approximately 10 seconds, significantly increasing laboratory throughput and efficiency.

• Durable Broach Material: Broaches manufactured from W18Cr4V high-speed steel, guaranteeing high rigidity, excellent wear resistance, and a service life of up to 20,000 samples per broach.

• Standard Compliance: Manufactured according to ASTM E23, ISO 148, and EN 10045, ensuring internationally recognized notch quality and consistency.

Specification:

Model	EI-VU
Processing gap	2mm V-type, 2mm U-type
Sample size	10 × 10 × 55mm , 7.5 × 10 × 55mm , 5 × 10 × 55mm (U – 3mm, U – 5mm – Optional)
Broach itinerary	350mm
Broaching speed	2.5m/min
Rate Power	240V, 50Hz, 400w
Dimension	660 × 500 × 1240mm
weight	Approx. 200kg



Specimen Size Comparison

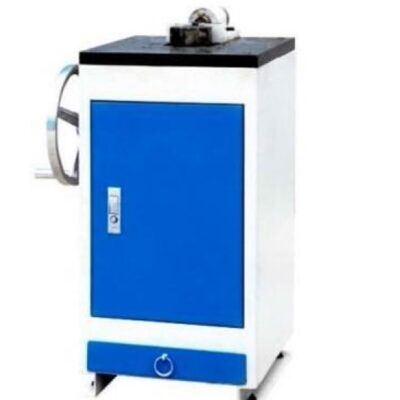

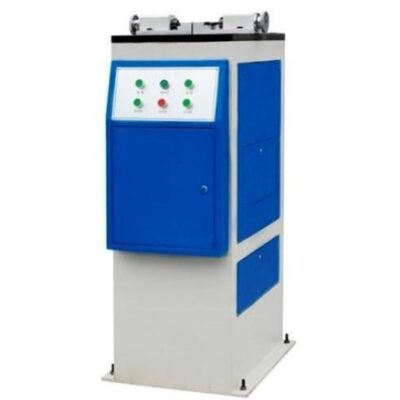

UV Notchs Broaching  machine – Hydraulic control pdf

UV Notchs Broaching  machine – Manual control pdf
