All Products >> Climate Chamber >>Aging Oven

Product Details

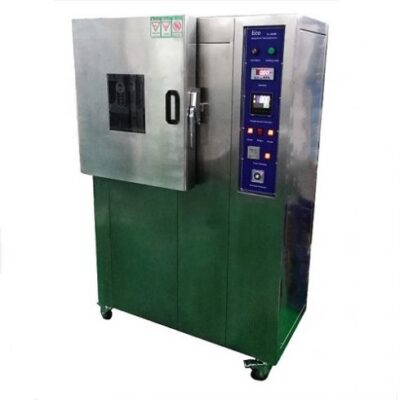

Aging Oven / Ageing Test Chamber

Aging Oven Test Chamber is ideal for rubber, plastics & insulating materials to perform the temperature ageing test at require temperatures and  time control.

Rubber and plastics can be experiment under the aging test, rapid identification of vulcanized rubber to enhance and justify on the best quality products with go through this environment aging testing progress.

Accordance Standard to CNS-3556, JIS-K 6301, ASTM-D 2436


Widely used in Rubber industry, film, resins, electronic, plastic printing and packaging , food, automotive, adhesives, metals, chemicals, building materials, aerospace, medical care and etc.

Model EI-2009B
Capacity 80 Litres
Temperature range  Ambient +15 °C ~ 150°C
Resolution Temperature 0.1°C
Accuracy Temperature ±1°C
Uniformity  ≤ 0.5°C
Heating time 1°C – 3.0°C/min
Material Stainless Steel ( Body + Inner Chamber)
Insulation Material High-temperature high-density amino acid ethyl ester foam insulation materials
Heating element U-shaped high temperature resistant heating
Fan motor Industry Fan motor: 1/2 HP, voltage 220 V / power 370 W
Wind Wheel 7.5 inch turbine wind wheel
Temperature Sensor K-type thermocouple sensor
Temperature Controller OMRON Intelligent PID controller – Industries standard
Timer OMRON Digital timer – industries standard
Turntable Ø 230 mm
Safety device Leakage and over-current protector, over-temperature
Inner Chamber 400 x 400 x 500 mm
Dimension 1020 x 620 x 1460 mm
Rate Power 3.5 kW
Rate Voltage 240 v 50/60 Hz /16 A
Weight Approx. 120 kg

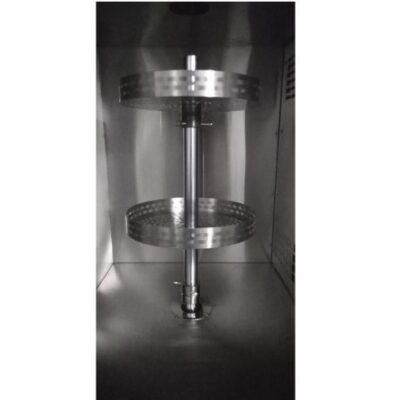

Turnable table

Data Sheet PDF
