Product Details

Tapped Bulk Density Tester for Powder

Tap Density Tester – Measure materials density is very important for many different industries laboratory to determine the characteristics of materials.

Tap Density is obtained by mechanically tapping a graduated cylinder containing the sample until little further volume change is observed.

Test Method
The measuring of this machine is achieved by tapping regularly the measuring cylinder which contains powder.  After users choosing the filling volume, the tapping action can start, when changes happen, the reading will be showed.
This tapping is finished by up-down also called vertical tapping of measuring glass cylinder at the specific tapping amplitude and require times to  perform tapping test in stability, reliability and precisely.  In the process of tapping, the machine will minimize the block matters when tapping down, and the transparent graduated glass cylinder can be easier for observing and reading the level of the test specimens.

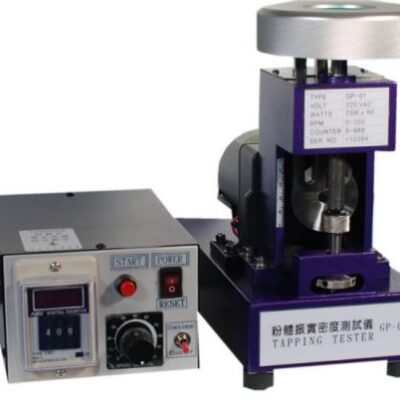

Tap Density Test Device

Tap Density Test Device

Applicable for powder metallurgy, powdered carbon, coke graphite, bio-pharmaceuticals, magnetic, new, energy materials, plastic, powdered milk and food dosage industry

Specification
Model
GP-01
Parameter Setting
A. Counter 0-999( times dip switch setting ,
Shut down automatically
B. Continuous tapping setting
Amplitude
Can be adjusted from 3 to 30 mm/m
Tapping times
Can be adjusted from 15 to 320 mm/m
Size
 180 × 300 × 230 mm
Weight
5.5 kg
Power
AC 220 v, 50 Hz
Counting sense
Photoelectric Sensor
Measuring tubes
25 ml & 100 ml measuring cylinder



Standard

ASTM B527, D4164, D4781, IDF 134, ISO 787-11, 3953, 8460, 8967, 9161, JISK5101-12-2, Z 2512, MPIF 46, USP<616>Part II, BSIB527, GB/T 21354, 5162, 14853

PDF Data Sheet

Tap Density Tester
